Y27 series four column hydraulic press for sheet metal drawing

Home / Product center / Sheet Hydraulic Drawing Press / Y27 series four column hydraulic press for sheet metal drawing

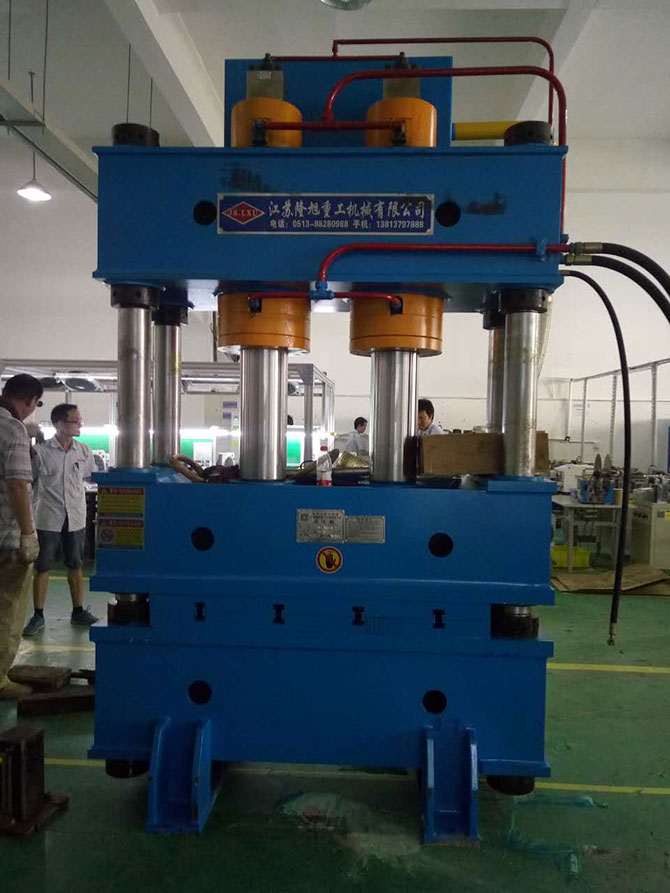

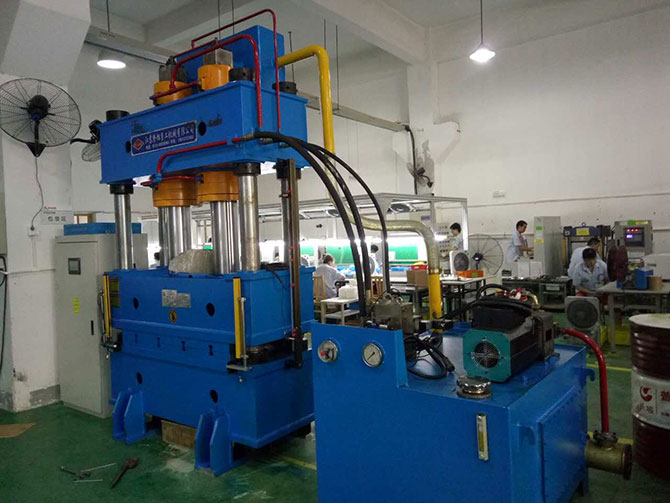

Y27 series four column hydraulic press for sheet metal drawing


Hydraulic Drawing Press

1、Be applicable to all stretching, bending, forming, feeding, blanking, flanging and other processes.

2、With structure design optimized by computer, the four-columnstructure is simple, economical and practical; the frame type structure has good rigidity, high accuracy and strong anti-deviation capacity.

3、The hydraulic control system adopts plug-inintegrated systemwith reliable operation, long service life, small hydraulic shock, reducing connecting pipe and leakage point.

4、The electric system is controlled by PLC, which is of compact structure, agility, reliability and flexibility.

5、The operation panel selectioncan not only realize two kinds of forming processes of constant control and pressure control, but also three processes cycle with pad, on-pad and ejection.

Technical parameter:

Item
Unit
YLX27
-63
YLX27
-100
YLX27
-200
YLX27
-315
YLX27
-500
YLX27
-630
YLX27
-1000
Nominal Force
KN
630
1000
2000
3150
5000
6300
10000
Return Force
KN
180
260
480
630
1000
1250
1250
Cushion Force
KN
200
500
800
1250
1000
2500
3000
Max pressure of liquid
KN
Mpa
25
25
25
25
25
25
Stroke
Slide
mm
450
700
710
800
900
1000
1400
Cushion
mm
180
300
250
300
350
400
350
Max Daylight
mm
900
1000
1120
1250
1500
1600
2300

Slide speed

Descent
mm/s
120
150
100
100
140
100
100
Pressing
mm/s
11-15
20
6-15
6-12
5-15
6-14
13
Return
mm/s
130
80
80
60
70
65
60

Table Dimensions
L-R
mm
560
720
1000
1250
1400
2600
2500
F-B
mm
500
580
900
1120
1400
1750
2000

Cushion Dimensions
L-R
mm
310
470
800
900
1100
1950
2000
F-B
mm
300
430
630
800
1100
1200
1500

Height of table above Floor
mm
750
750
500
600
500
500
0
Total Power
KW
11
11
22
22
45
45
90
Total Weight
Kg
4200
6500
14200
18000
29500
77000
102000

Overall Dimensions
L-R
mm
1420
1960
2698
3018
4120
5222
5800
F-B
mm
1265
1620
2530
2530
3600
3785
6050

Height above Floor
mm
2698
3250
4110
4560
5545
5970
8098

Depth below Floor
mm
300
800
1000
1200
1400
2400
Form of frame

Four

Column


Four

Column


Four

Column


Four

Column


Four

Column


Four

Column


Four

Column
