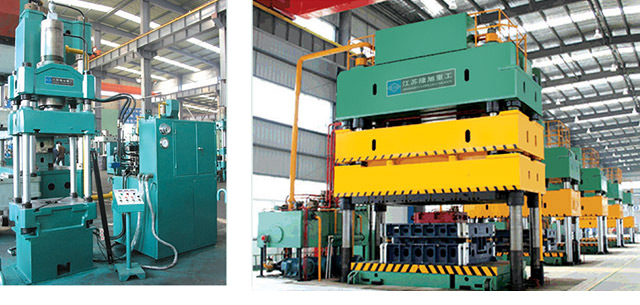

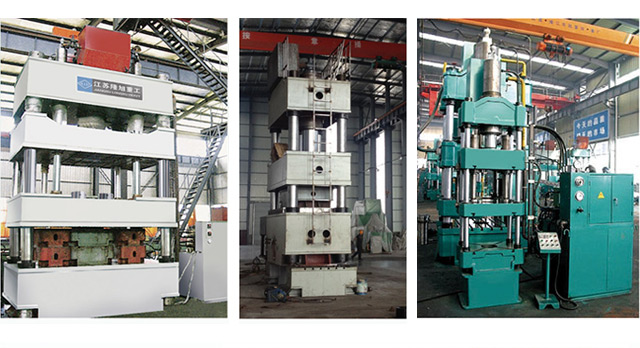

YLX28 series hydraulic press for sheet metal drawing

Home / Product center / Sheet Hydraulic Drawing Press / YLX28 series hydraulic press for sheet metal drawing
YLX28 series hydraulic press for sheet metal drawing

PERFORMANCE FEATURES:
1、Computer to optimize the design of the structure, the fuselage frame type can be used or four pillar type construction;
2、Frame type rod preload structure, high precision, good rigidity, the four
guide rail and orientation precision, partial load resistance is strong;
3、Four pillar type construction is simple, economic, practical;
4、Imported material cylinder sealing components, high reliability, long service life;
5、Moving workbench, convenient mould replacement;
6、Tensile, compression side slide block by positioning pin etc, realize the dynamic process of single action; Machine, electricity, liquid integration of safety devices, such as cylinder inferior vena supporting  circuit, oil cylinder on the superior inferior vena safety interlock circuit, etc;
7、Imported PLC control, the work is a sensitive and reliable;
8、Can choose the common control system or servo control system.

Technical parameter:

項目Item
單位
Unit
YLX28
-63
/100
YLX28
-100
/150
YLX28
-150
/200
YLX28
-200
/300
YLX28
-220
/315
YLX28
-400
/650
YLX28
-400
/600
公稱力
Nominal force
kN
1000
1500
2000
3000
3150
6500
6000
拉伸力
Drawing Force
kN
630
1000
150
2000
2200
4000
4000
頂出力
Knock out Force
kN
190
190
400
400
400
1000
630
壓邊力Blank-holder Force
kN
300
500
630
800
1000
2300
2000
液體最大壓力
Max pressure of liquid
Mpa
25
25
25
25
25
25
25
拉伸滑塊行程
Stroke of drawing slide
mm
600
600
700
800
800
1100
800
壓邊滑塊行程
Stroke of Blank-holder silde
mm
250
250
250
400
350
1000
720
頂出行程
Stroke of knock out cylider
mm
200
250
250
350
350
300
400
拉伸滑塊開口高度
Daylight of drawing slide
mm
1000
1200
1300
1400
1560
1600
2190
壓邊滑塊開口高度
Dylight of Blank holder slide
mm
600
750
900
720
820
1600
1300
工作臺面有效面積
Table area
mm2
720×580
800×800
1000×900
980×900
1120×1120
2600×1800
1250×1250
速度
Speed
空載快下行
Rapid down
mm/s
100
100
100
100
100
200
100
空載慢下行
Deceleat
down
mm/s
20
20
20
20
20
30
16
拉伸(壓制)
Pressing
mm/s
10-20
10-20
10-20
10-20
10-20
20
10-16
回程
Return
mm/s
100
100
100
135
100
200
100
頂出
Knock-out
mm/s
95
95
60
60
90
100
100
退回
Return
mm/s
220
220
180
180
200
200
200
主機輪廓尺寸
Overall dimensions
of machine
左右 L-R
mm
2500
2300
3800
3800
3800
5400
4300
前后 F-B
mm
1500
900
1800
1800
1800
3600
2315
距地面高度
Height
above
floor
mm
3200
3600
4400
4600
4400
9300
5240
電機功率Total power
kW
11
15
22
37
37
90
37
全機重量Total weight
kg
6000
8500
14000
17000
19000
101000
31000
備注Remark
mm
300×300
380×380
500×500
600×550
800×600
1600×1000
800×800

Previous: YLX series hydraulic press for sheet metal drawing    Next: Y27 series four column hydraulic press for sheet metal drawing return
