Series Swing-column Adjusing Press-assembly Hydraulic Press

Home / Product center / Single Column Hydraulic Press / Series Swing-column Adjusing Press-assembly Hydraulic Press

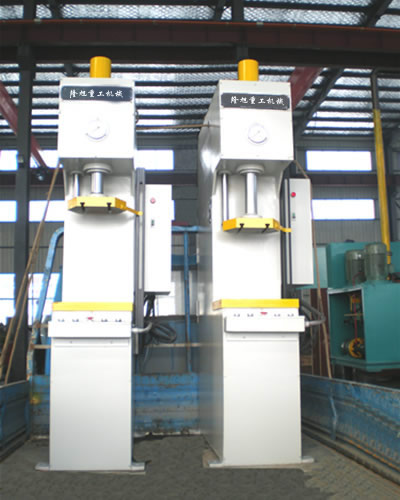

Series Swing-column Adjusing Press-assembly Hydraulic Press

PERFORMANCE FEATURES:

Use and characteristics:
This machine is suitable for the pressing process of plastic material, such as stamping, bending, flanging, sheet drawing as well as pressing, pressing and grinding, forming of cold extruding metal parts, pressing forming process of plastic products and powder products.
The machine is centralized button control, two specifications of manual adjustment and semi-automatic cycle can be achieved.
The stroke range of working pressure, fast down and deceleration downof this machine can be adjusted according to the needs of work.It can realize two kinds of processes of band ejection and non band ejection, and there are two kinds of technological movements of constant pressure forming and fixed forming in each process for option.The main cylinder has the function of holding pressure, delaying time and returning stroke after pressing, and there are acts of ejecting, delaying, returning, etc. when ejecting. The time of holding pressure delay and ejecting delaycan be regulated by time relay.
This machine has independent power system, easy to adjust and repair. The hydraulic device is a plate valve integration with compact structure and reliable operation.

Technical parameter:

Item

Unit

YLX30-25
YLX30-40
YLX41-63
YLX41-100

Nominal Force

kN
250
400
630
1000
Max Liquid Working Pressure
Mpa
16
20
20
20

Reverse Stroke Force of Main Cylinder

kN
100
180
180
100

Ejector Force

kN
100
100
190
190

Throat Depth

mm
250
325
325
325

Max Slider Stroke

mm
350
500
500
500

Max Stroke of Ejector Piston

mm
140
150
200
200

Max Distance between Slider and Workbench

mm
550
770
800
900

Max Distance between Ejector Piston and Workbench Top

mm
220
220
230
230

Height of Workbench above Ground

mm
750
770
850
1000

Effective Area of Workbench Top

L-R

mm
560
600
630
700

F-B

mm
480
550
600
600

Slider Speed

Idle Motion Down Stroke

mm/S
40
45
115
115

Working Speed

mm/S
20
22
22
22

Reverse Stroke Speed

mm/S
80
100
100
100

Ejector Piston Speed

Ejector Speed

mm/S
100
100
80
80

Backing Speed

mm/S
200
200
160
160

Machine Floor Area

L-R

mm
1550
1550
1600
2000

F-B

mm
1310
1350
1930
1655

Height above Ground

mm
2150
2380
2470
2883

Total Power

kW
5.5
5.5
7.5
11

Total Weight

kg
1755
2500
4000
5000
