4 column hydraulic press machine

Home / Product center / Four Column Hydraulic Press / 4 column hydraulic press machine
4 column hydraulic press machine


PERFORMANCE FEATURES:

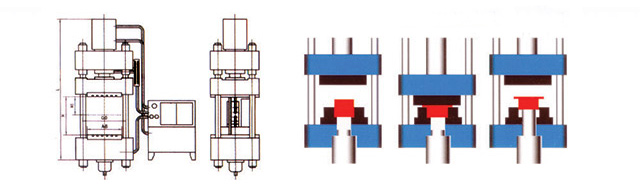

1、Computer optimized structure design, three beam four-post type structure, simple, economic and practical;

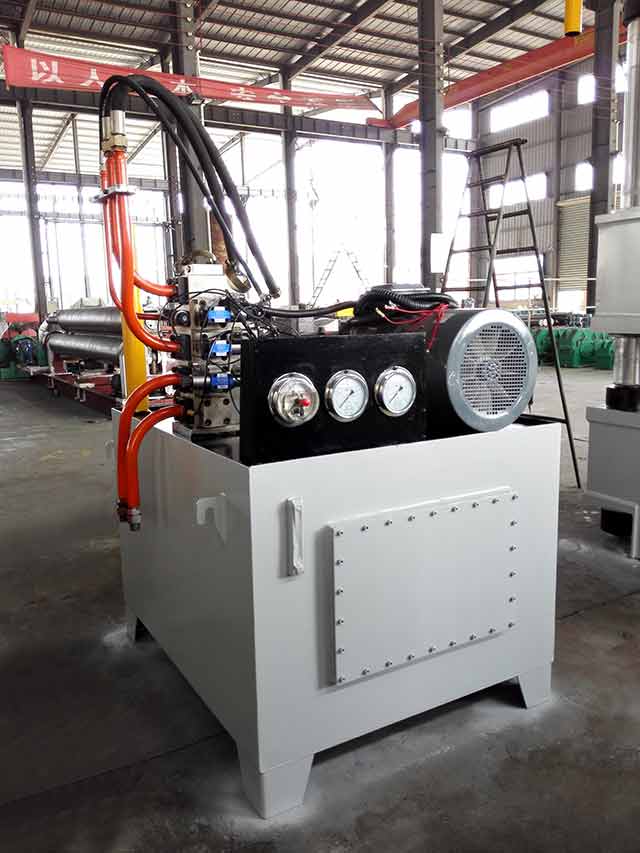

2、Adopt and cartridge valve integrated hydraulic control system, reliable
operation, long service life, small hydraulic impact, reduce the connection pipe and the leak point;
3、Independent electrical control system, reliable operation, intuitive,
easy maintenance;
4、The centralized control buttons, three operation modes of adjustment, manual and semi-automatic;
5、Through the selection of operation panel, which can realize the fixed distance and constant pressure two forming process, and have confirmed when rolling, and other functions;
6、The slider working pressure, load fast descending and slow work into schedule scope may need to adjust according to the craft;
7、Adopt common control system or servo control system.
YLX32 Series four-column hydraulic press technical data

參數名稱 parameter
單位Unit
YLX32-40
YLX32-63
YLX32-100
YLX32-100E
YLX32-160C
YLX32-200A
YLX32-315A
YLX32-400
YLX32-500B
YLX32-500C
YLX32-630
公稱力 Rated pressure
KN
400
630
1000
1000
1600
2000
3150
4000
5000
5000
6300
頂出力 Knock-out force
KN
120
190
190
400
400
400
630
630
1000
1000
1000
液體最大工作壓力
Max. hydraulic pressure
MPA
25
25
25
25
25
25
25
25
25
25
25
滑塊最大行程
Stroke of Slide
MM
400
500
600
600
700
700
800
800
900
900
900
頂出活塞最大行程
Stroke of knock-out piston
MM
150
160
200
200
250
250
300
300
350
350
350
開口高度     Daylight
MM
600
700
900
900
1000
1100
1200
1300
1500
1500
1500
滑塊滑行速度 Speed of slide
空載下行 Empty
descending
MM/S
100
100
100
120
120
100
100
100
100
100
100
工作 Pressing
MM/S
10
25
10
16
10
12
12
12
12
12
12
回程 Return
MM/S
52
80
50
80
50
80
60
45
80
80
50
工作臺有效尺寸Effective area of table
左右L-R
MM
500
560
720
750
1000
1000
1250
1250
1400
2200
1500
前后F-B
MM
460
500
580
640
800
900
1200
1200
1400
1400
1500
機器外型尺寸
Overall dimensions of machine
左右 L-R
MM
1800
2400
2500
2700
2700
2825
3235
3235
4060
6500
4200
前后F-B
MM
1200
1400
1500
1700
1700
1500
1500
1500
1800
1800
2000
地面以上高Height above
ground
MM
2600
3100
3150
3400
3400
3725
4295
4500
4995
4740
5600
電機功率     Motor power
KW
4
7.5
7.5
11
11
15
18.5
22
37
37
45

參數名稱parameter
單位Unit
YLX32-800
YLX32-1000
YLX32-1250
YLX32-1600
YLX32-2000
YLX32-2500
YLX32-3000
YLX32-3500
YLX32-4000
YLX32-5000
公稱力     Rated pressure
KN
8000
10000
12500
16000
20000
25000
30000
35000
40000
50000
頂出力     Knock-out force
KN
1600
1600
2000
2000
2000
2500
2500
3150
4000
8000
液體最大工作壓力Max. hydraulic pressure
MPA
25
25
25
25
25
25
25
25
25
25
滑塊最大行程Stroke of Slide
MM
900
900
900
1000
1200
900
1200
1200
900
900
頂出活塞最大行程Stroke of knock-out piston
MM
450
450
450
300
300
450
450
450
360
350
開口高度     Daylight
MM
1600
1600
1600
1800
2000
1800
1800
2500
1500
1500
滑塊滑行速度Speed of slide
空載下行Empty descending
MM/S
100
80
80
100
100
100
120
120
100
100
工作 Pressing
MM/S
8
10
8
10
10
10
10
10
8
8
回程Return
MM/S
50
50
50
80
70
60
80
100
60
80
工作臺有效尺寸Effective area of table
左右 L-R
MM
1800
2000
2000
2400
2500
2500
4000
4000
5000
5000
前后 F-B
MM
1600
1800
1800
2000
2000
2380
2500
1500
1600
1600
機器外型尺寸 Overall dimensions of machine
左右 L-R
MM
4800
5200
5200
6500
6500
6600
9000
8000
12100
12100
前后 F-B
MM
4000
4300
4300
4500
4500
4500
4600
2500
3700
3700
地面以上高Height above ground
MM
6000
6450
6450
6500
6800
8450
10000
11000
7650
7850
電機功率     Motor power
KW
45
60
60
≈120
≈145
≈145
≈180
≈250
≈350
≈450

Previous: YLX32 series four column universal hydraulic press    Next: 4 column hydraulic press machine return
