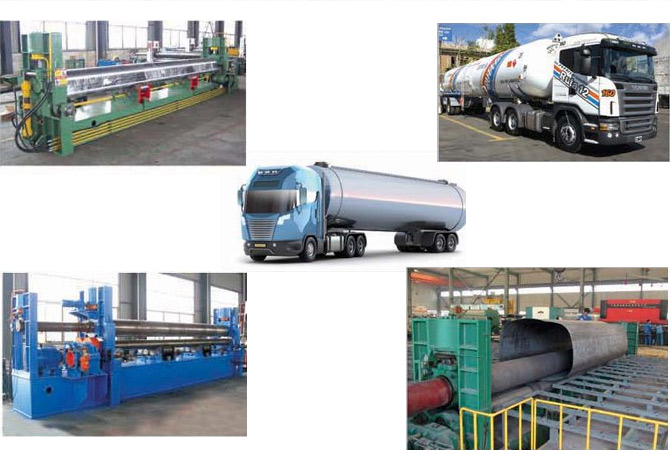

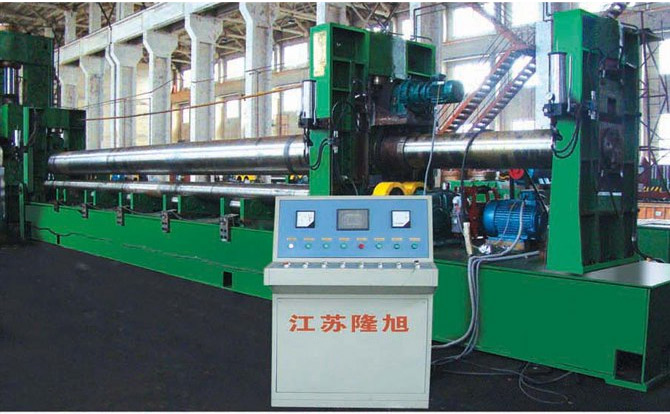

Upper roller universal plate rolling Machine for trailer

Home / Product center / Special Rolling Machine / Upper roller universal plate rolling Machine for trailer
Upper roller universal plate rolling Machine for trailer

PERFORMANCE FEATURES:
1、The upper roller can make vertical elevation or horizontal shift.the vertical is a hydraulic driving, which is achieved
by the action of the oil in the hydraulic cylinder on the piston.
2、The horizontal shift is achieved through the torques from the laed screw
cabinet,worm and the structure of screw and worm, the lower roller only makes rotaion,providing torque for bending and
rolling,on the lower side of the lower roller, there is a support roller for adjustment,the upper roller is in drum shape
for enhancing the straightness of the products.
3、The machine is fit bending various cylinder bodies.
Technical parameter

規(guī)格型號 Model 上輥加壓力pressureon the uppe roller(Tons) 最大板厚Max. plate thickness(mm) 板幅 Plate width(mm) 上輥直徑 Diameter  of upper roller(mm) 電動機 Motor(kW)
端曲End bending(mm) 中央 Center (mm) 驅(qū)動用 Driving 油壓用 Hydraulic 移動用 Shift
W11SNC-8x6000 130 6 8 6000 450 15 7.5 4
W11SNC-8x8000 160 8 8 8000 480 15 7.5 4
W11SNC-8x9000 190 8 9 9000 520 17.5 7.5 4
W11SNC-10x6000 160 10 10 6000 460 18.5 7.5 7.5
W11SNC-16x6000 270 16 16 6000 520 30 11 7.5
W11SNC-20x6000 320 20 20 6000 550 37 15 11

Previous: Lower roller horizontal adjustable plate rolling machine    Next: plate rolling machine for ship building industry return
